Steady State IR Source
NEW PRODUCT
HelioWorks, Inc. offers a NEW unique steady state black body infrared emitter in an industry standard TO-3 package with nearly 12 Watts input power at up to 950°C (1223°K). It has no window and therefore emits the full unattenuated blackbody spectrum. Other window options are available
Key features include:
- Kanthal Filament with Emissivity = 0.7
- Approximately 12 Watts input at 950°C (1223°K)
- Emits full BB spectrum with No Window
- Internal Gold Plated Parabolic Reflector
- Industry Standard TO-3 Package
- Clear aperture = 0.540 inches
Electrical Specifications:
- Peak Voltage = 4.0 Volts DC MAXIMUM
- Peak Current = 2.96 Amps
- Peak Power r= 11.84 Watts

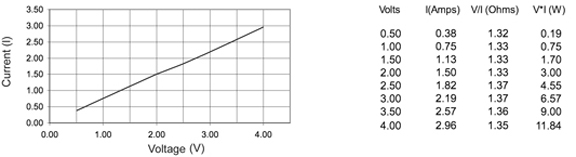

Current vs. Voltage

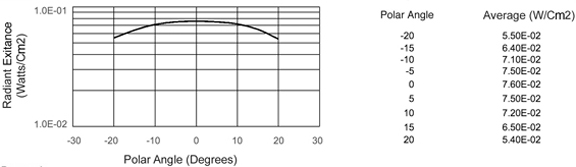

Radiant Exitance (W/Cm2)
Volts =4.0, Distance = 3.0 inches from source
